Product Description

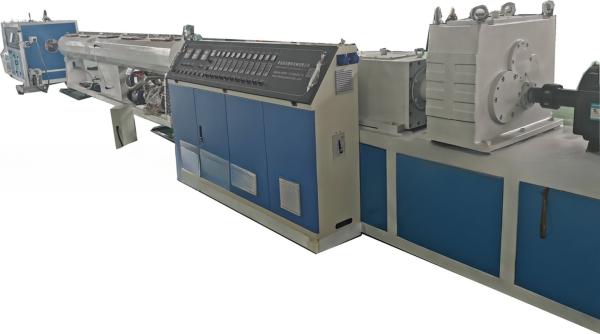

China best PVC pipe extrusion production line
Main Features:
Specified screw design for better material plasticizing&mixing effect and lower cost formula.
Higher density and stronger mechanical properties of the pipe as a result of large compression ratio of mold design.

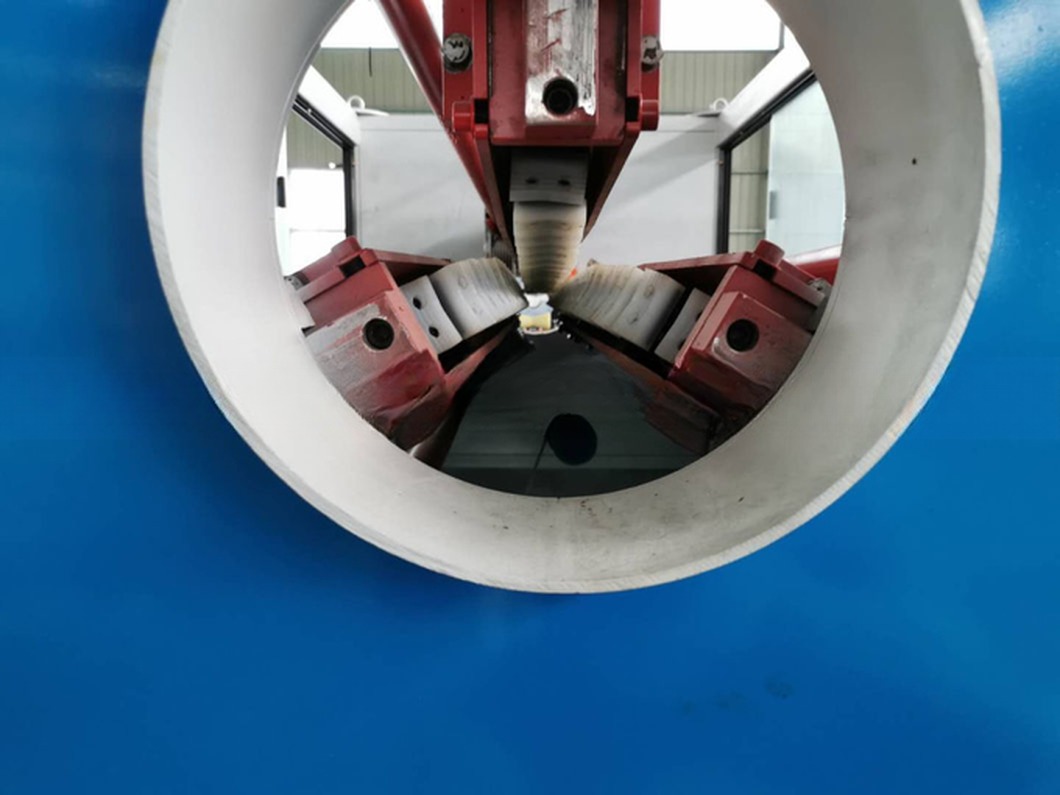

More stable and reliable hauling, no deformation, multi-caterpillar structure of haul-off unit, suitable for different size range.

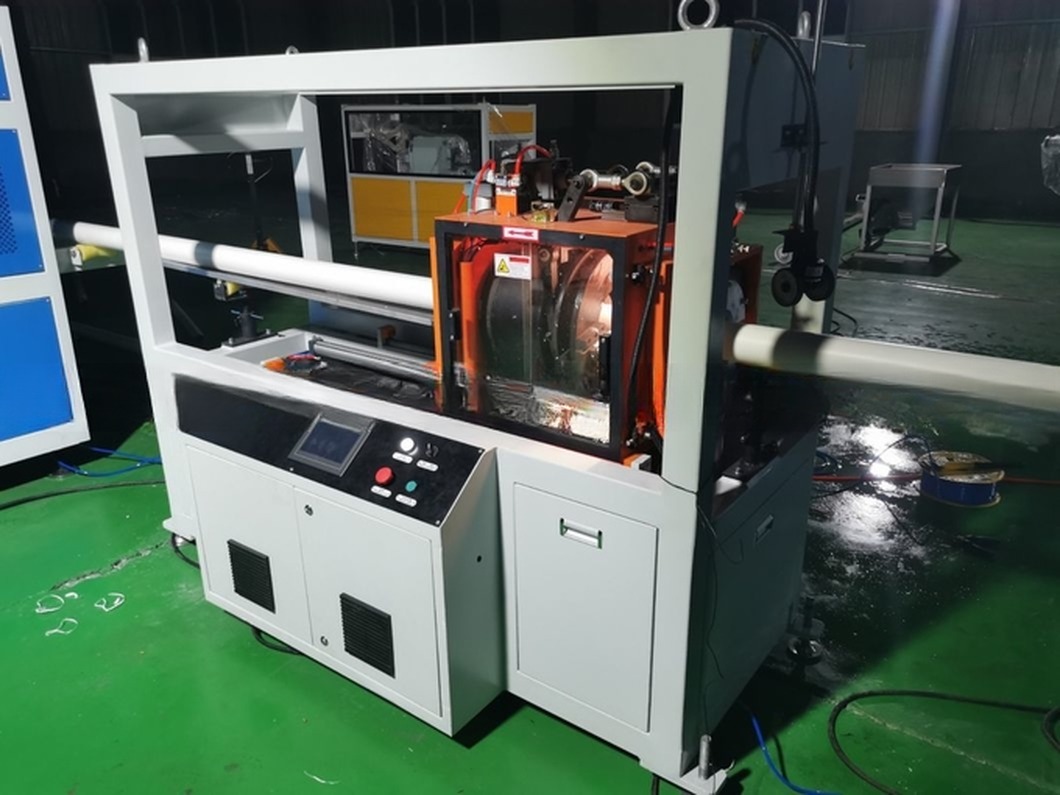

Planetary cutting with chambering function for stable&reliable cutting and precise length-counting.
machine component:
1. material auto loader
2. SJSZ65/132 twin conical screw extruder
3. mould
4. vacuum water tank
5. haul off
6. cutter
7. stacker
Product Parameters
Main technical parameters
Model |
Pipe range/mm |
Capacity kg/h
| Maximum linear velocity
(m/min) |
Main motor power /kw
|
Total length/m |
| SJSZ-65/132 | 50-110 |
120-250
| 6 |
37
| 22 |
| SJSZ-80/156 | 110-250 |
250-400
| 5 |
75
| 23 |
| SJSZ-92/188 | 315-630 |
400-700
| 1.5 |
110
| 32 |
PVC Double-Pipe Production Line | Model | Pipe Diameter | Output | Max Speed | Motor | Total Length |
| SJSZ-65/132 | 50-75mm | 250-350 kg/h | 6m/min*2 | 30kw | 22m |
| SJSZ-80/156 | 50-110mm | 500-750kg/h | 8m/min*2 | 55kw | 23m |
Detailed Photos
spiral type auto loader

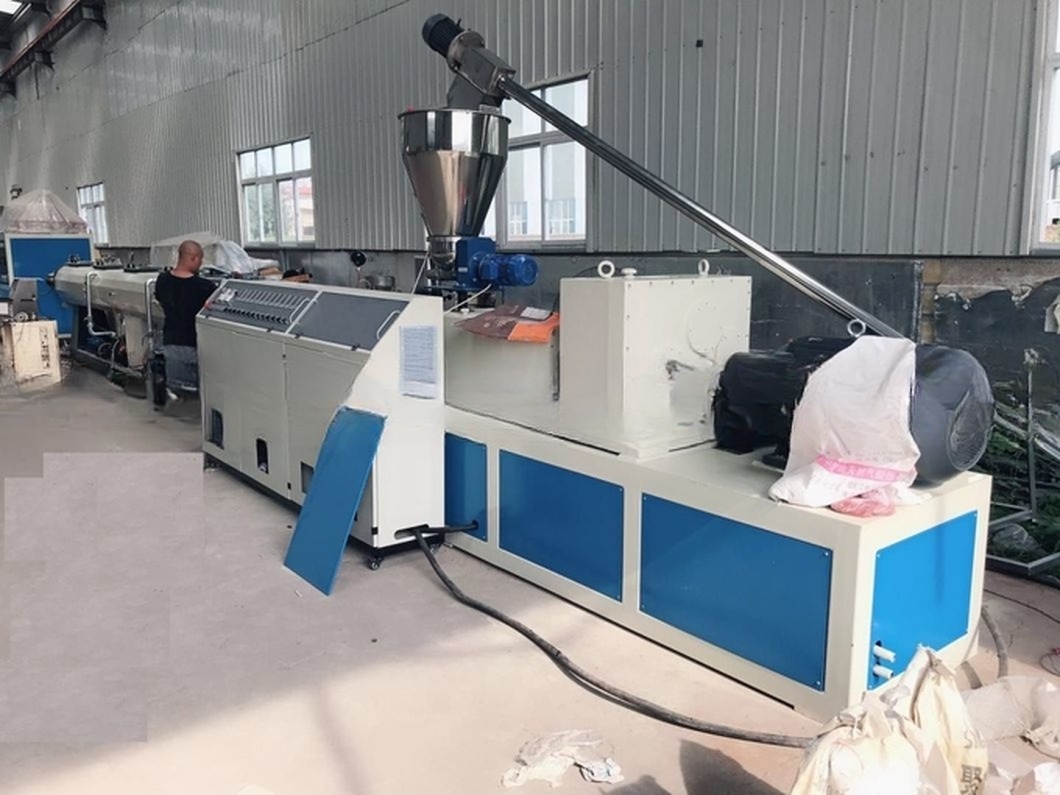

SJSZ 65/132 twin conical screw extruder.
37 kw main motor
special screw designed for PVC pipe
high output extruder

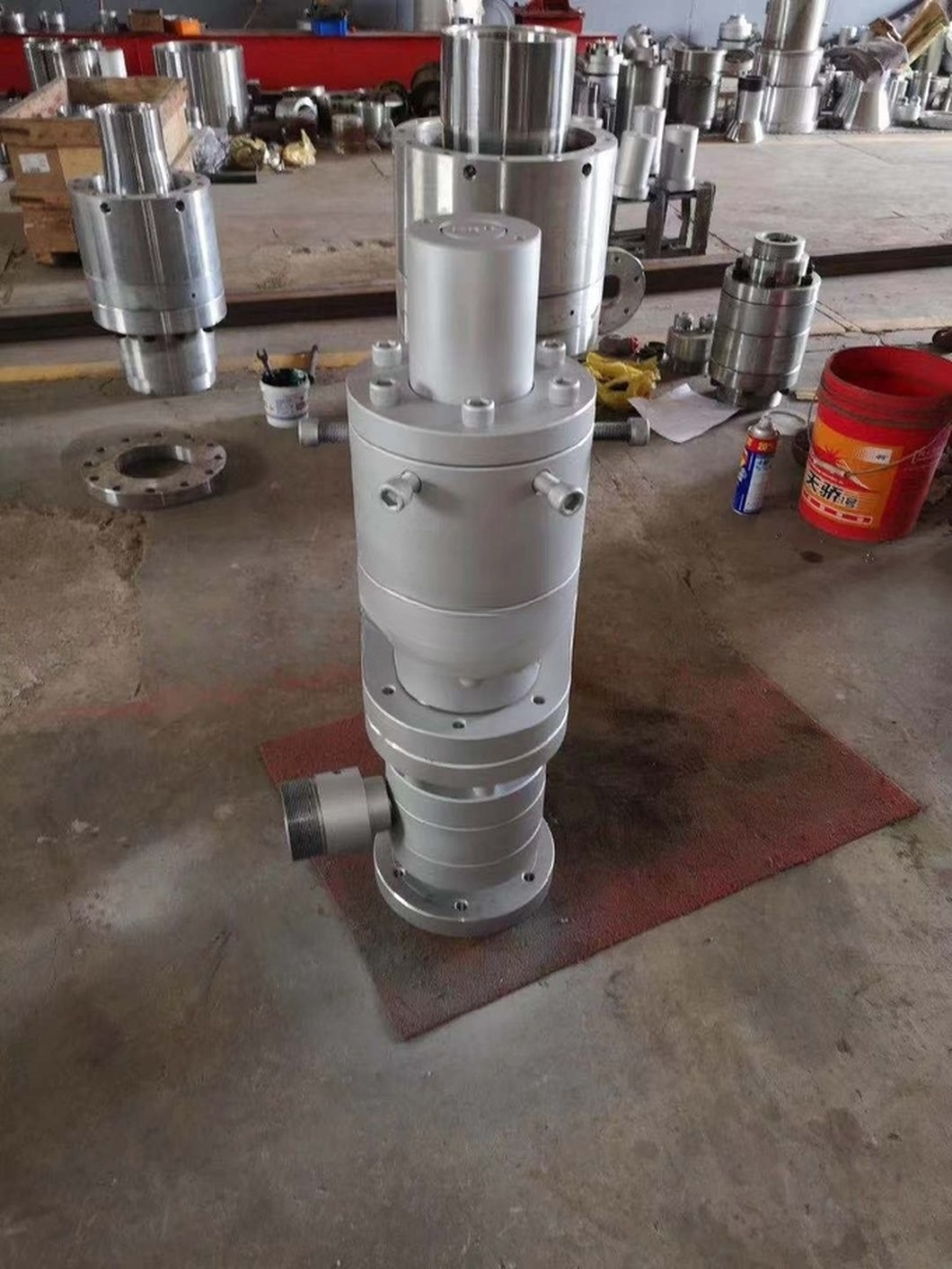

special PVC pipe mould
cups & nozzal & stainless steel sizer
size: 50-110 mm, 75-160 mm 110-200 mm 160-315 mm

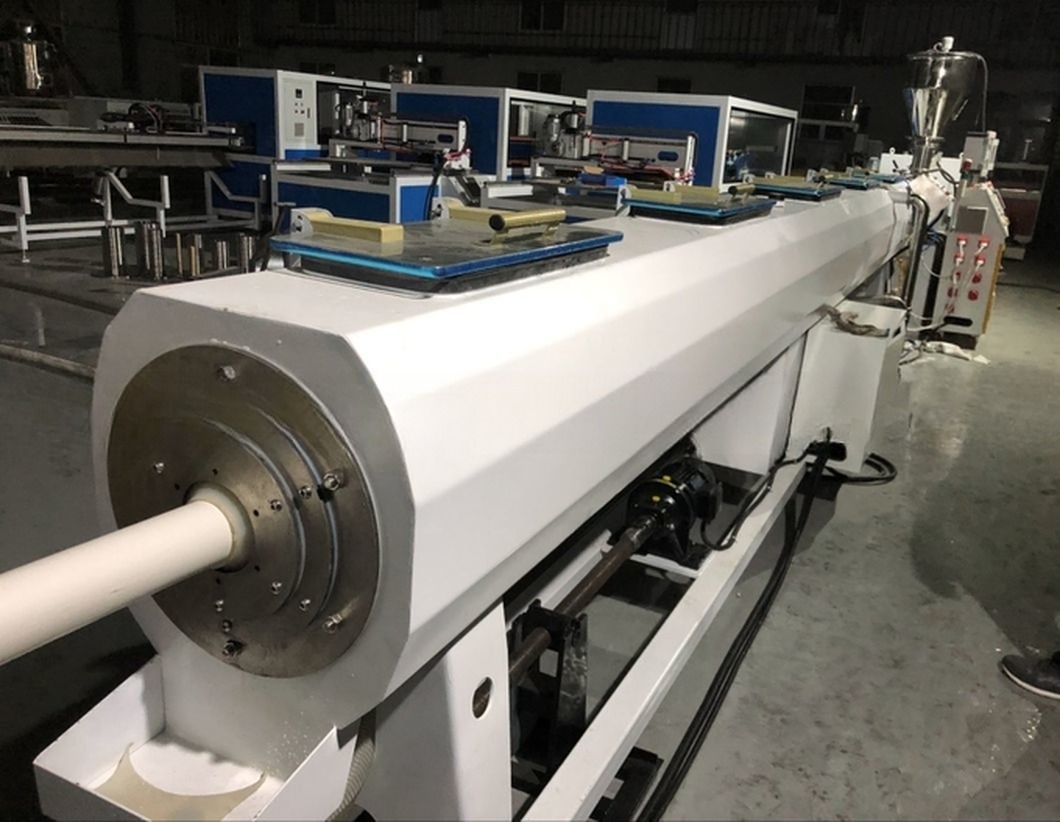

vacuum tank length: 6 m
material of tank: stainless steel 304
vacuum pump: 5.5 kw
Certifications
Our Advantages
1. After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine,
we will test the machines and send the sample to buyer.
2..After shipment, the seller will send one or two technicians to the buyer's factory to help the buyer install the machine and train
workers for buyer.
3. We will supply all electricity drawing, machine installation drawing.
4. When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays,
and other items which is easier broken.
