Affordable 20-63mm HDPE Water Supply Pipe Production Line with Shipping Cost Details

Name: Affordable 2063mm HDPE Water Supply Pipe Production Line with Shipping Cost Details
Brand: Changyue
Price: 1 USD

Affordable 20-63mm HDPE Water Supply Pipe Production Line with Shipping Cost Details Manufactures

Model NO. : SJ 90/38

Automation : Automatic

Computerized : Computerized

Certification : CE, ISO9001

Customized : Customized

Condition : New

After-sales Service : Site Installation

Suitable Material : HDPE PPR

Pipe Size : 315-630 mm

Machine Output : 1000 Kg/H

Delivery Time : 15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)

Loading Port : Qingdao Port

Machine Certificate : CE

Transport Package : Film

Specification : 20-63mm

Trademark : CHANGYUE

Origin : Shandong, China

HS Code : 84772090

Supply Ability : 950-1000 Kg/H

Package Size : 5500.00cm * 200.00cm * 350.00cm

Package Gross Weight : 25000.000kg

Warranty : One Year

Product Type : PE Pipe

Screw No. : Single-screw

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : Shandong, China

Brand Name : Changyue

Packaging Details : Export Film Packing / According To Customer

Contact Now

HDPE pipe production line

Prouduct description
PE pipe extrusion machine is mainly used for producing agricultural irrigation pipes,drainage pipes,gas pipes,water supplying pipes,cable conduit pipes etc. The pipe has some excellent features such as heating resistant,etc. our extrusion line is designed with high efficiency extruder and equipped with reducer which is high speed and low noise,Gravimetric dosing unit and ultrasonic thickness indicator can be assembled according to customer's demand to ascend the priecise of the pipes.Turn key solution can be provided, like laser printer , crusher,shredder, water chiller,air compressor etc. to achieve high-grade and automatic tube production.

Process Flow:
Raw material+master batches-Mixing-Vacuum feeder-Plastic hopper drier-Single screw extruder- Co-extruder for color string&multi layers-Mould-Vacuum calibration tank-Spray cooling water tank-Haul off-No dust cutter-double/single disc winding/stacker-Final product inspecting&packing

Technical parameter

pipe range(mm)	20-63	20-110	75-250	90-315	110-450	250-630	400-800
extruder model	SJ65/33	SJ65/33	SJ60/38	SJ75/38	SJ75/38	SJ90/38	SJ120/38
extruder power(kw)	45	75	110	160	160	280	315
max.output(kg/h)	130	220	410	580	580	900	1150

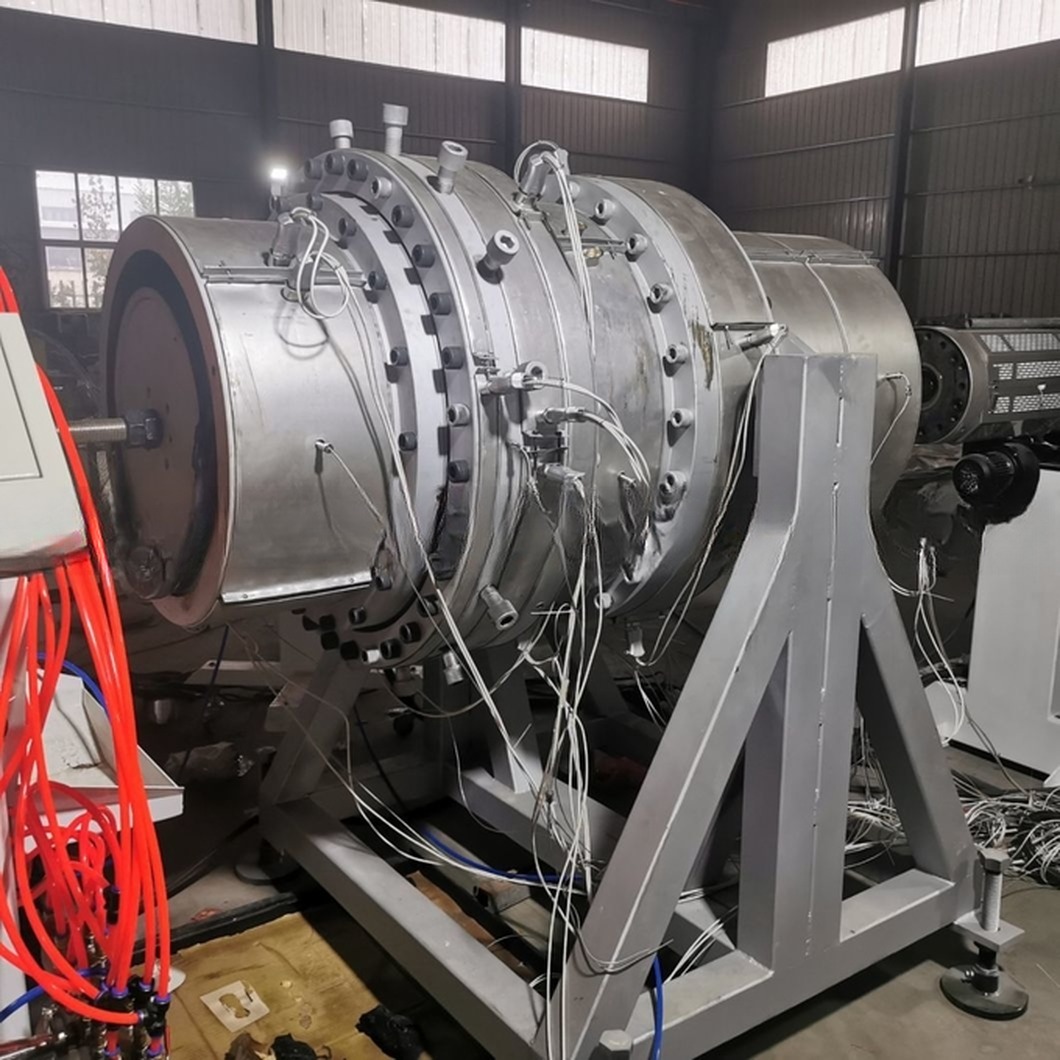

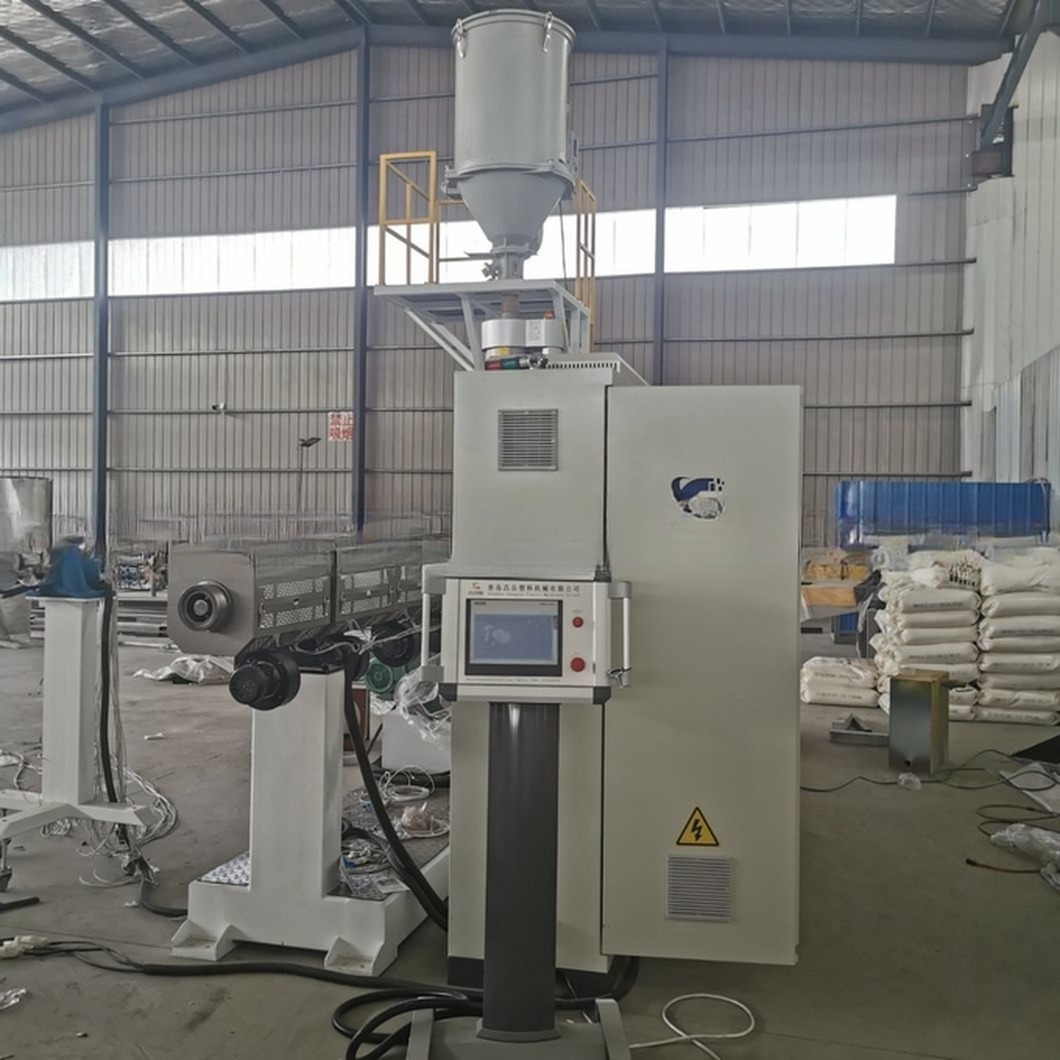

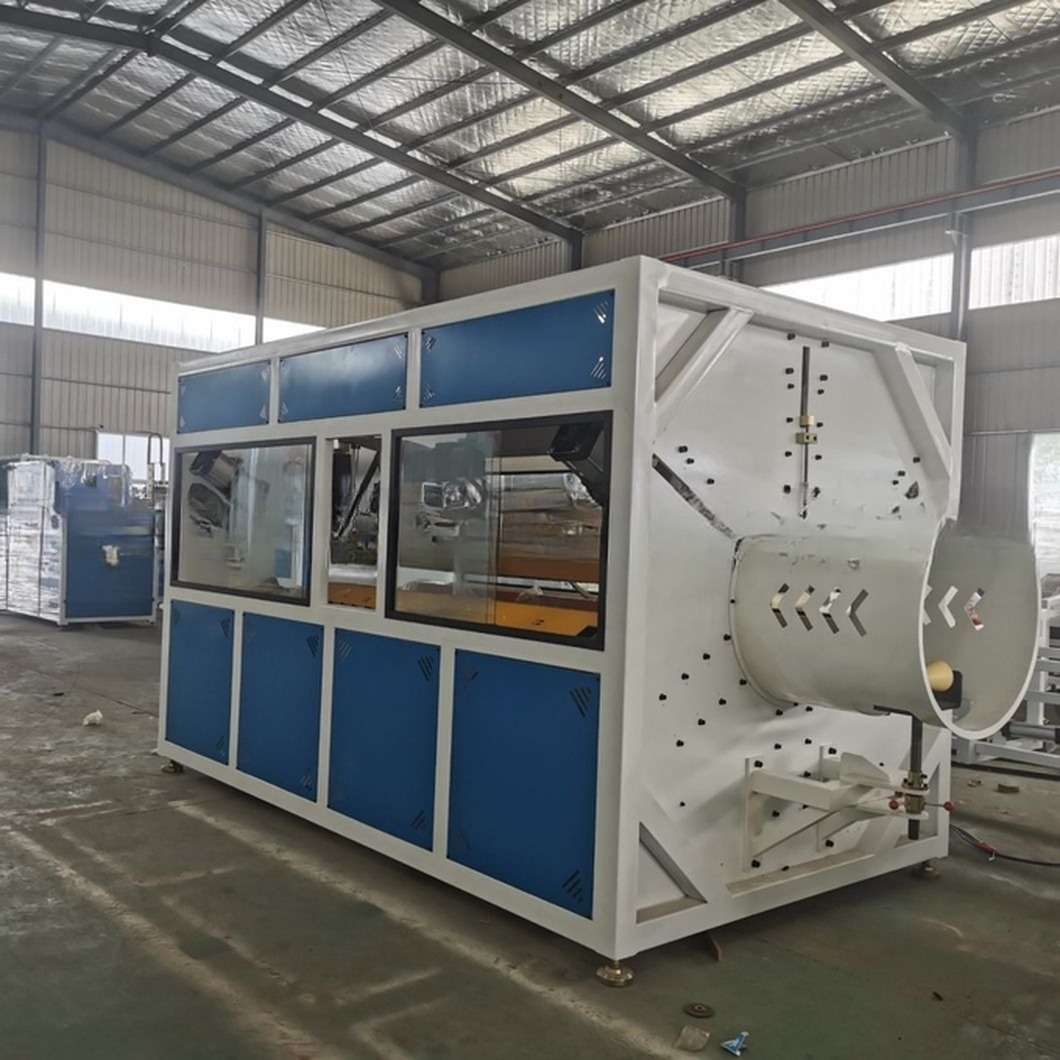

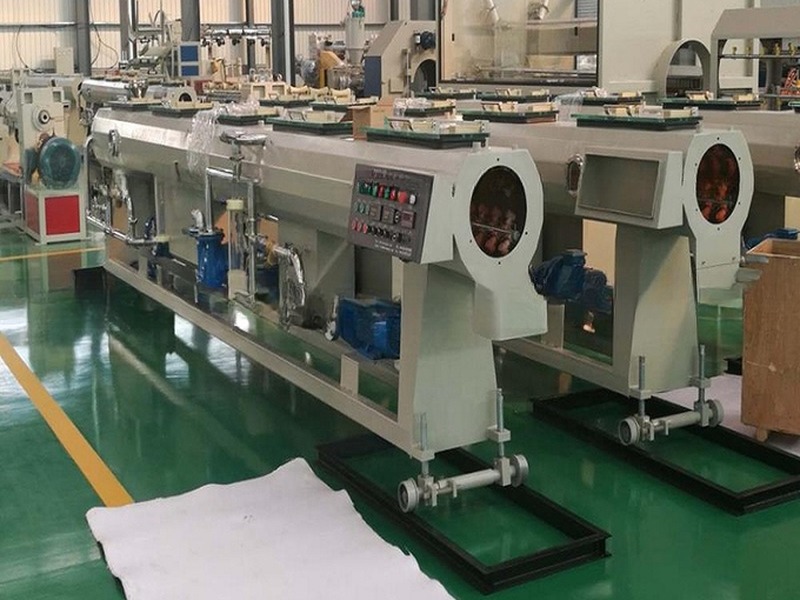

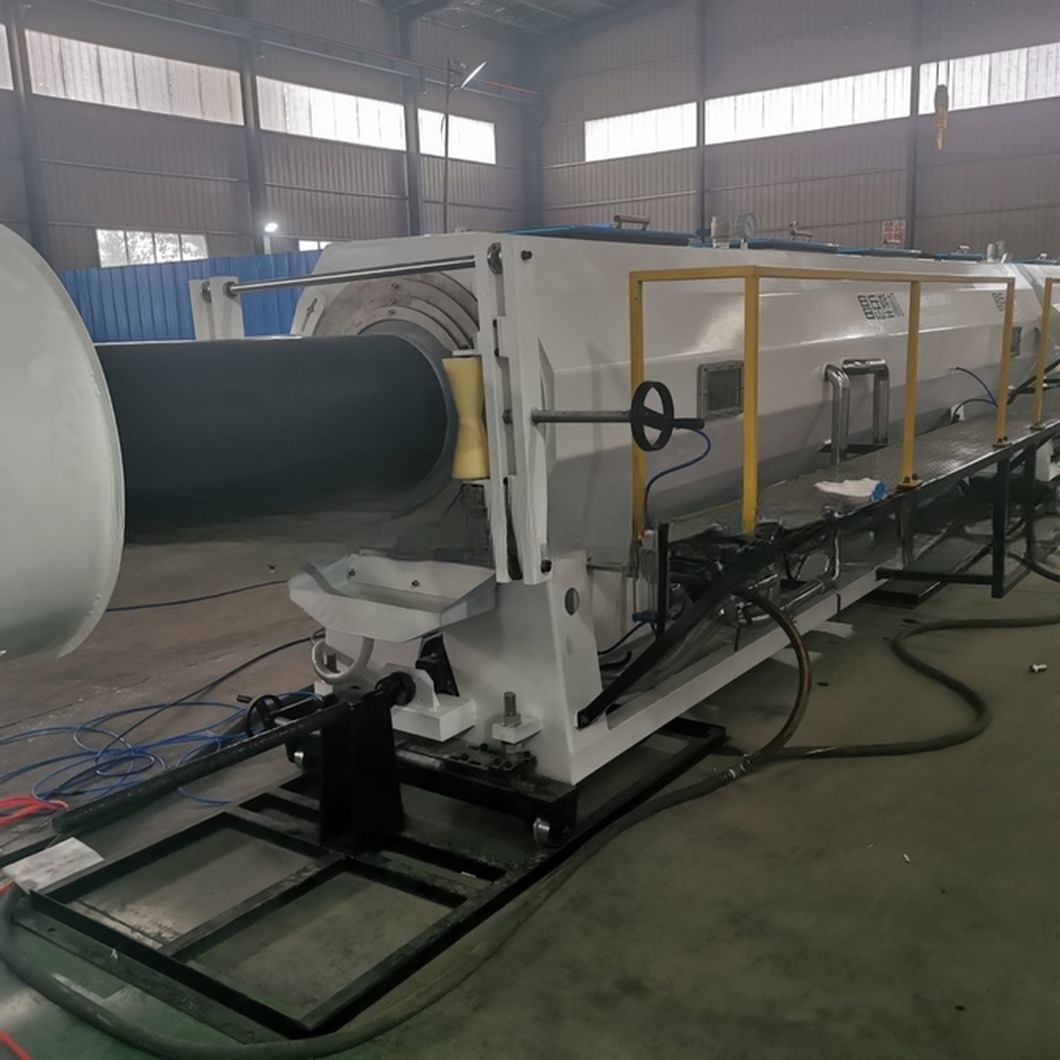

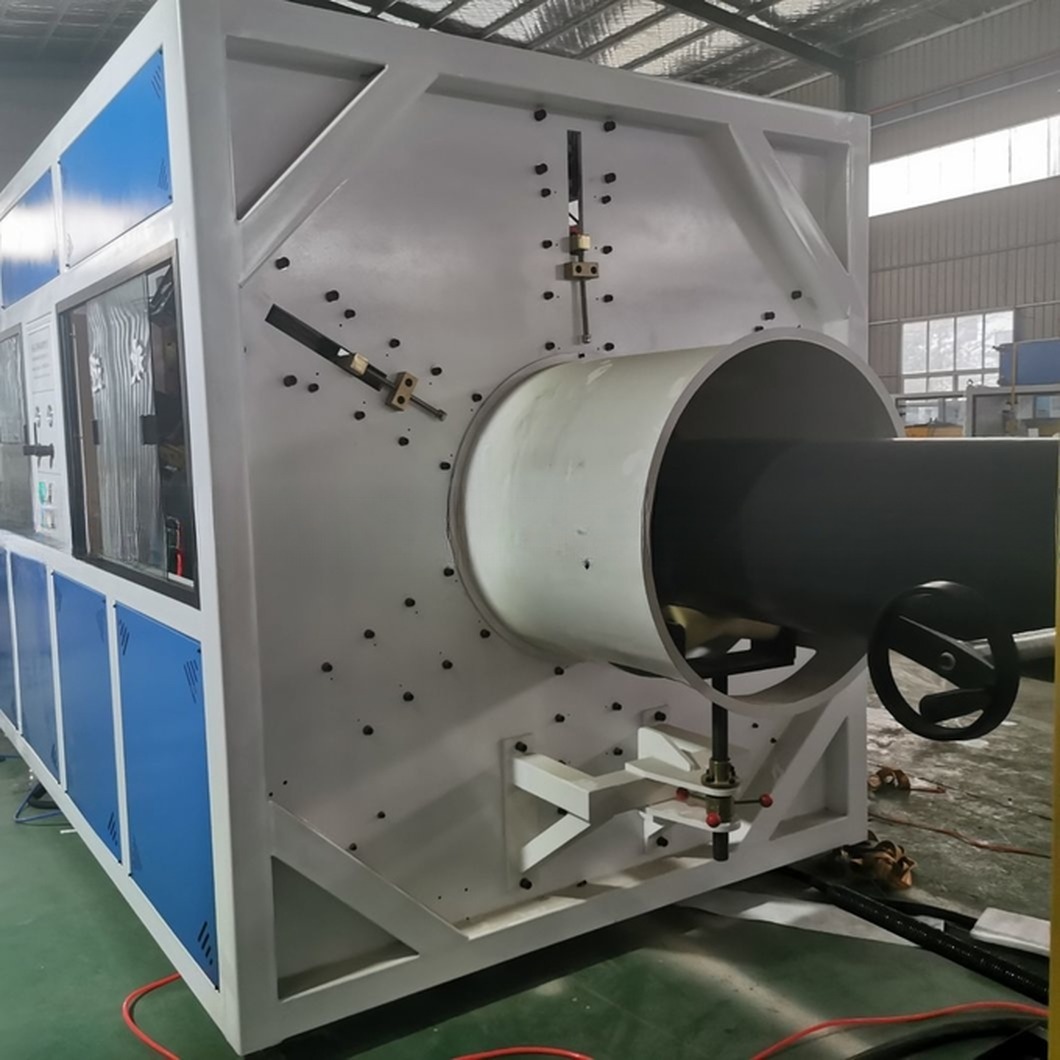

Machine details
Affordable 20-63mm HDPE Water Supply Pipe Production Line with Shipping Cost Details

Our customer&exhibition

Affordable 20-63mm HDPE Water Supply Pipe Production Line with Shipping Cost Details Images
